GaiaRay Portable Solar Power Station With LiFePO4 Battery
GaiaRay Portable Solar Power Station With LiFePO4 Battery
Couldn't load pickup availability

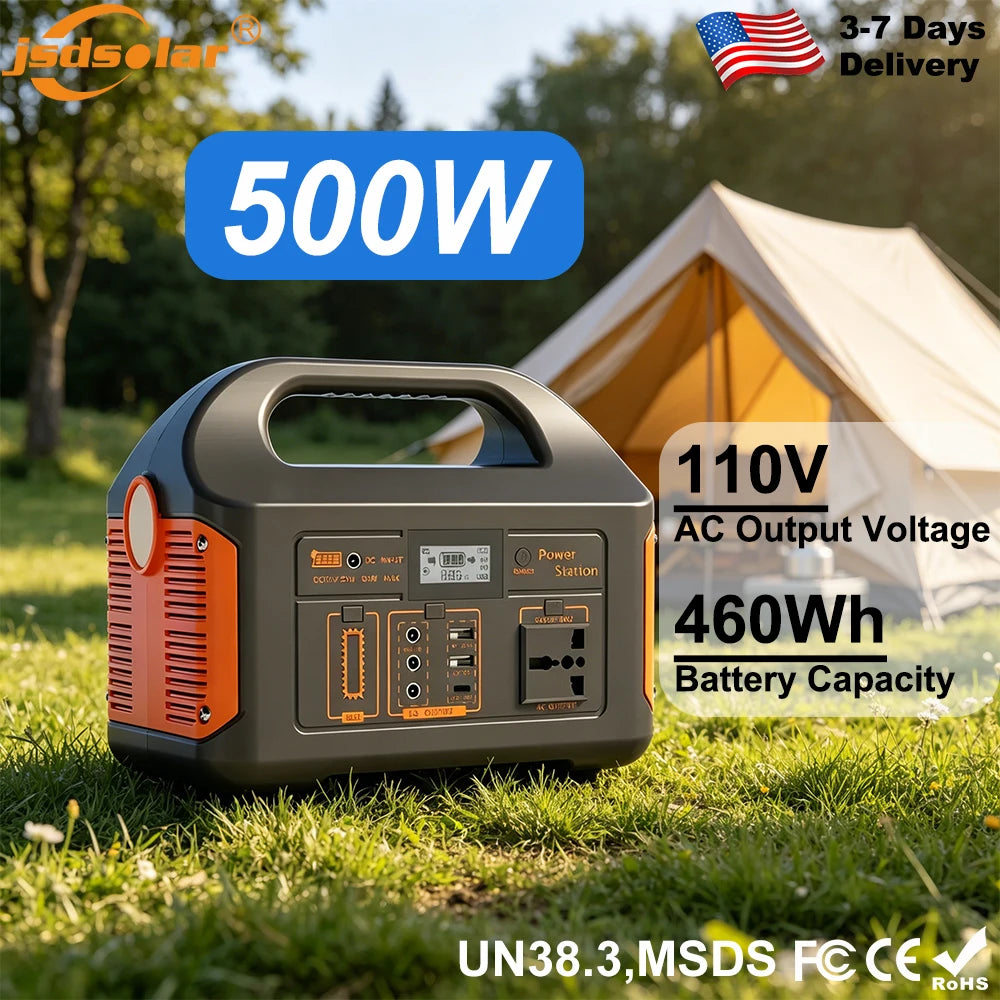

Keep your devices powered at a campsite, during an outage, or away from an outlet with this portable solar power station.
- Choose your capacity: Select a LiFePO4 version with 76.8Wh, 230Wh, or 460Wh capacity and 100W, 300W, or 500W rated power. Sizes are 160 × 100 × 143mm, 211 × 160 × 196mm, and 271 × 172 × 220mm.

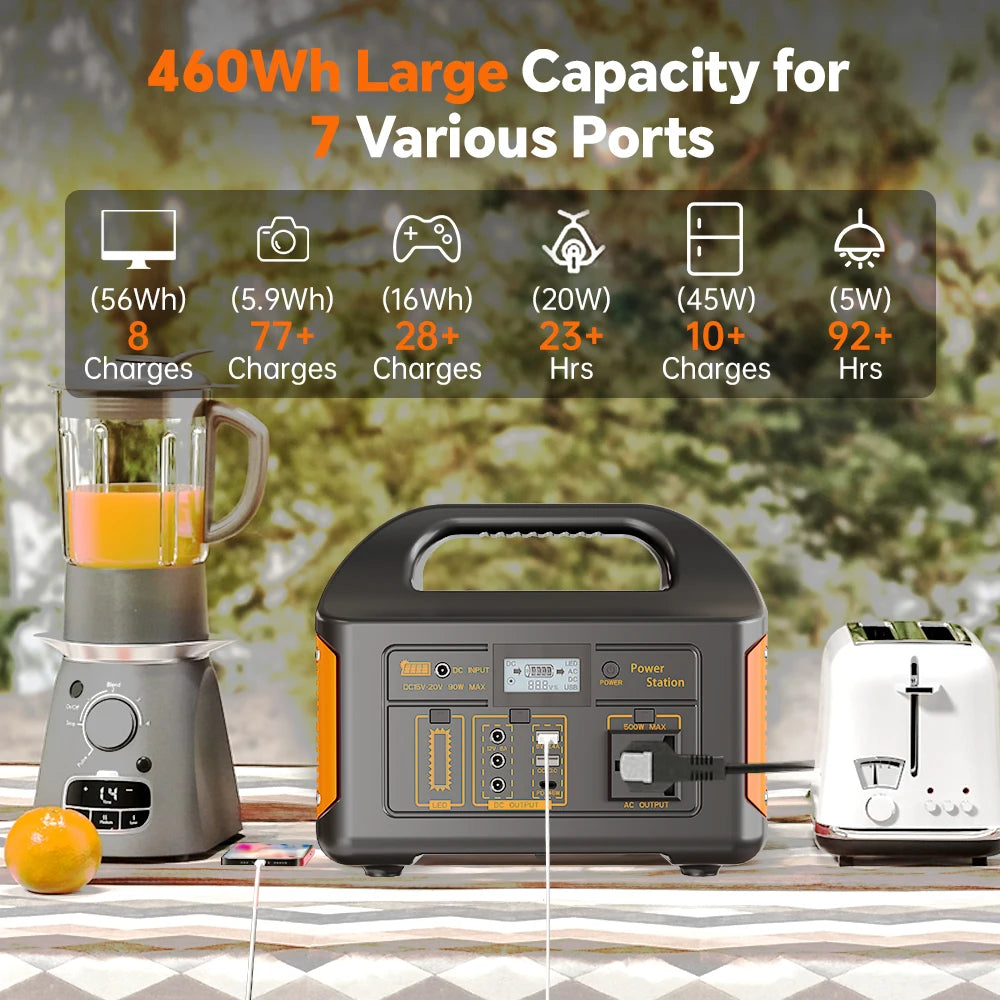

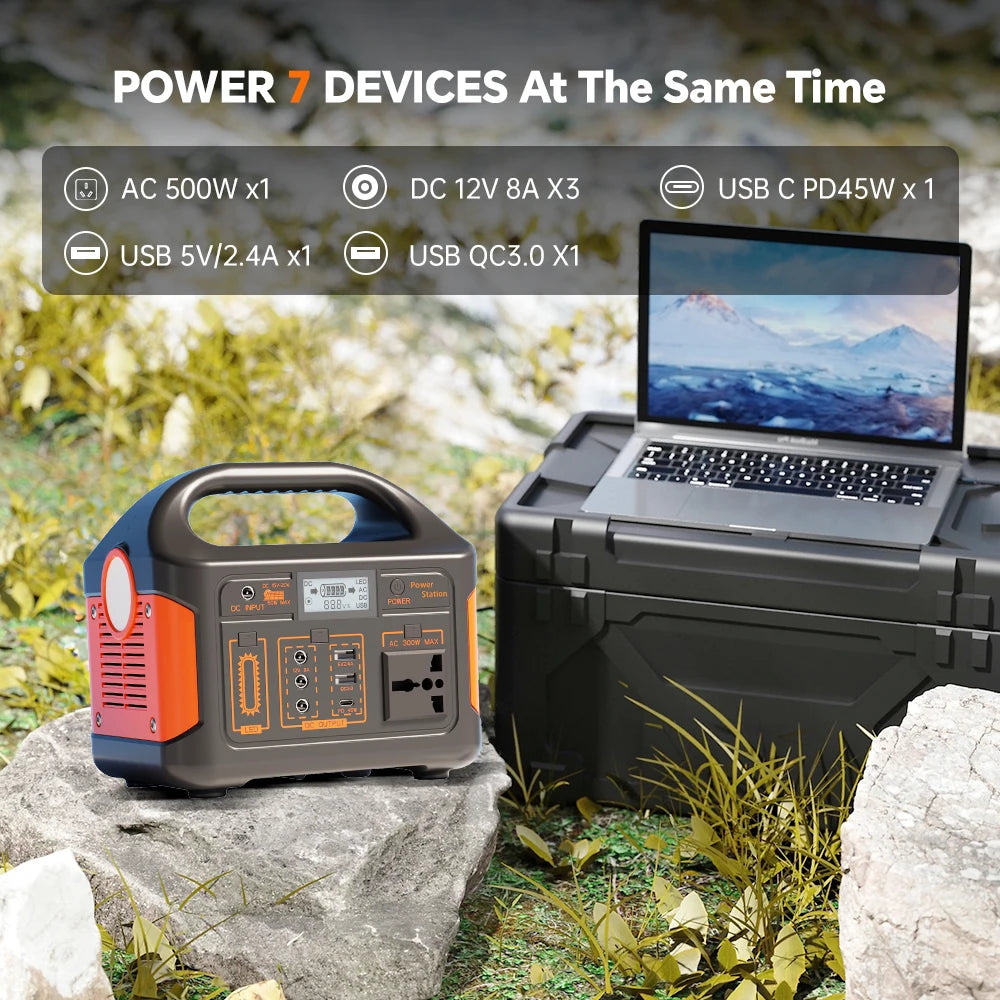

- Power your devices: Use the universal AC socket, two USB ports, and DC outputs; listed options include QC 3.0, PD 45W, and 12V/8A.

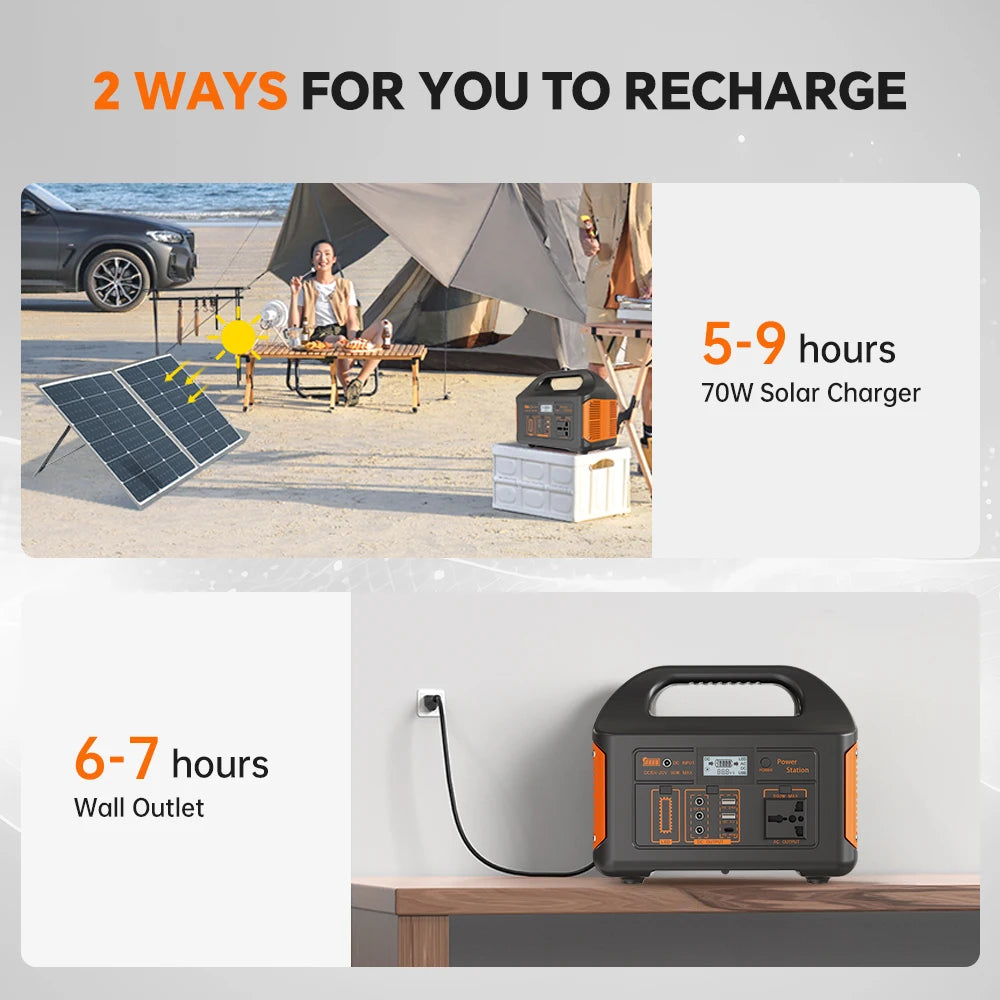

- Recharge by sun or AC: Solar input supports 15–20V, with maximum charging power of 30W, 50W, or 90W across the versions.
- Stay informed: The LCD shows battery voltage and charge or discharge status. LED light settings and protections against overload, short circuit, and temperature issues add useful everyday features.
Rated Power |
100W |
300W |
500W |

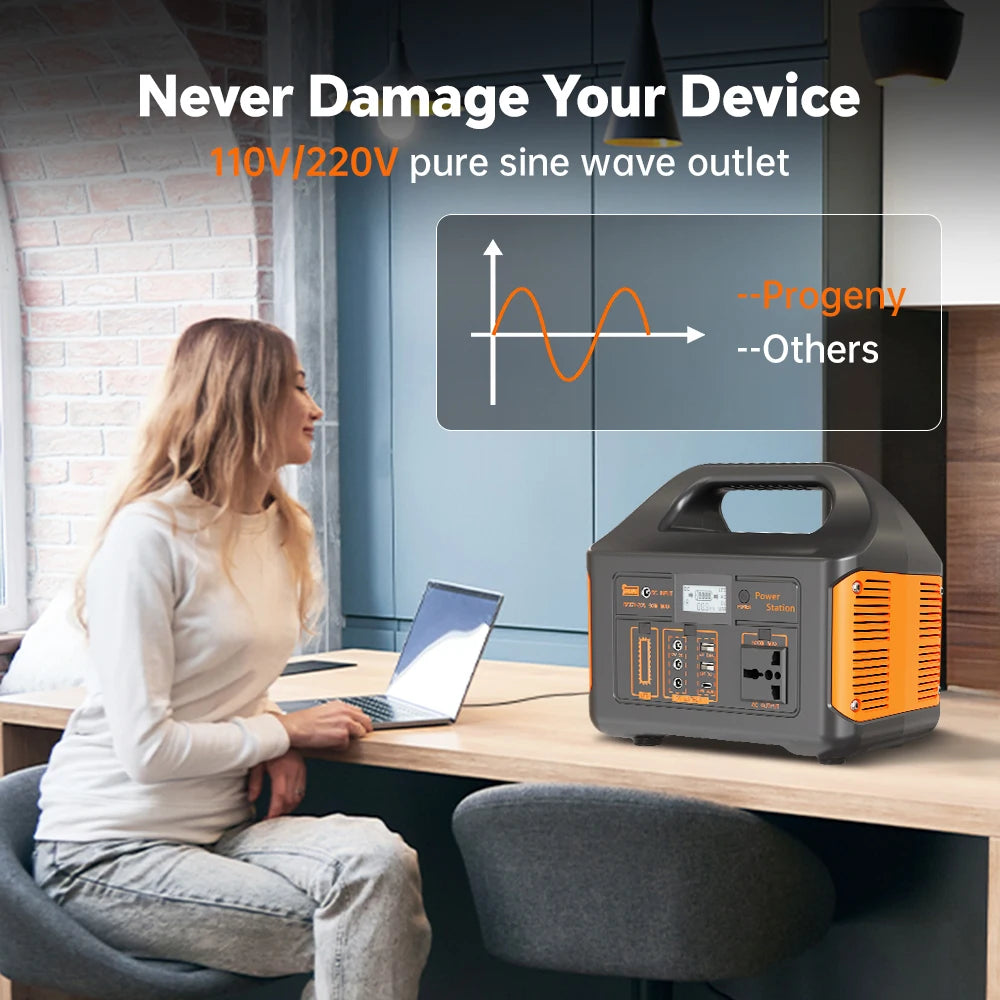

Output Waveforr |
Modified sine wave |
Pure Sine Wave |
|
AC Output Voltage |
110V,220V |
||
AC Output Frequency |
50Hz/60Hz ± 0.5Hz |
||
Conversion Efficiency |
Maximum Value>90% |
||
Charging interface |
Charger Port and Solar Panel Charging Port DC5521(Built in solar intelligent controller) |
||
AC Output Socket |
Universal Socket |
||
DC Output Voltage |
DC5V 2.4A, 2 * USB;DC12V 3A, 2 * DC5521 |
USB 5V 2.4A; QC 3.0; PD 45W; DC12V8A; 3 * DC5521 Port |
|
LED Light States |
LED bright, half bright, flashing,LED off 4 states |
LED high beam,low beam. Bight, half Bight, fishing LED of 6 states |
|

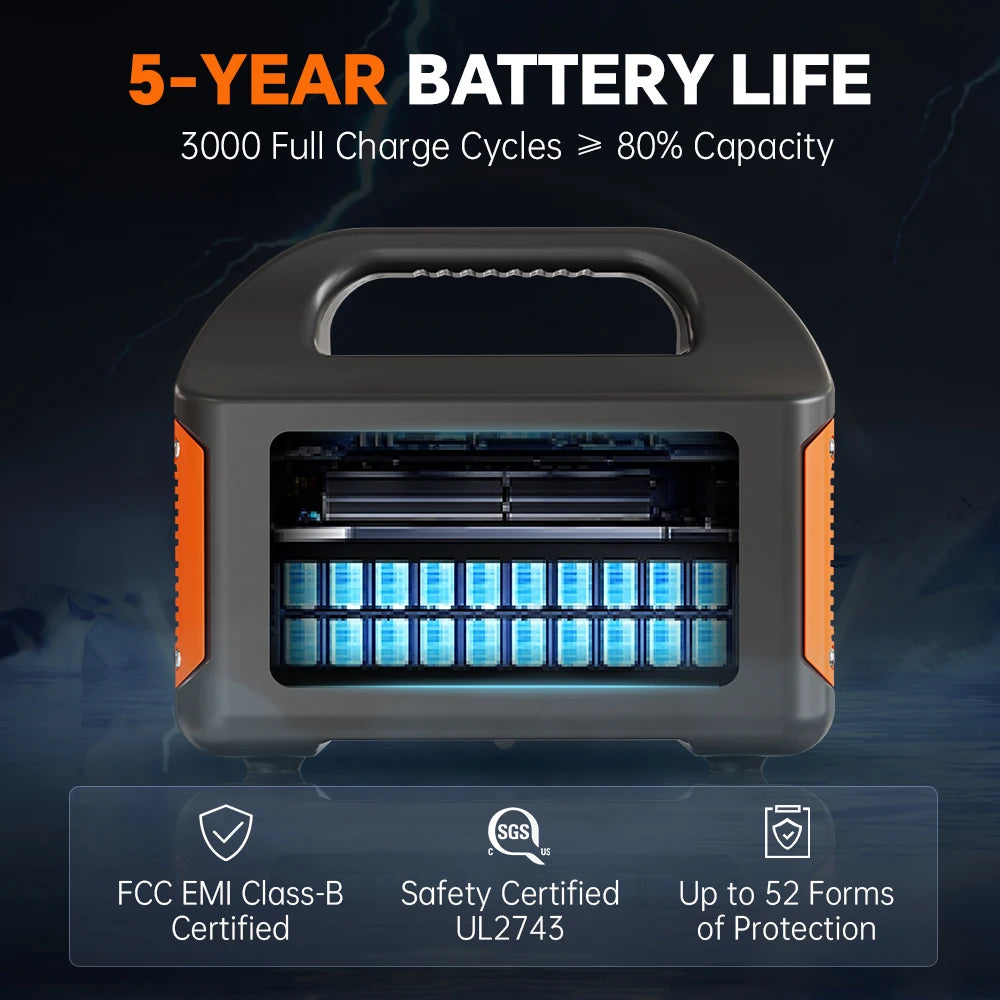

Battery Type |
LiFePO4 |
||
Battery Capacity |
76.8Wh |
230Wh |
460Wh |
Solar panel charging |
15V-20V Max 30W |
15V-20V Max 50W |
15V-20V Max 90W |
Charging Current |
Maximum Value 2A |
Maximum Value 2.5A |
Maximum Value 6A |
AC Charqer Specifications |
5v 2A |
14.6V 2A |
16V 5A |

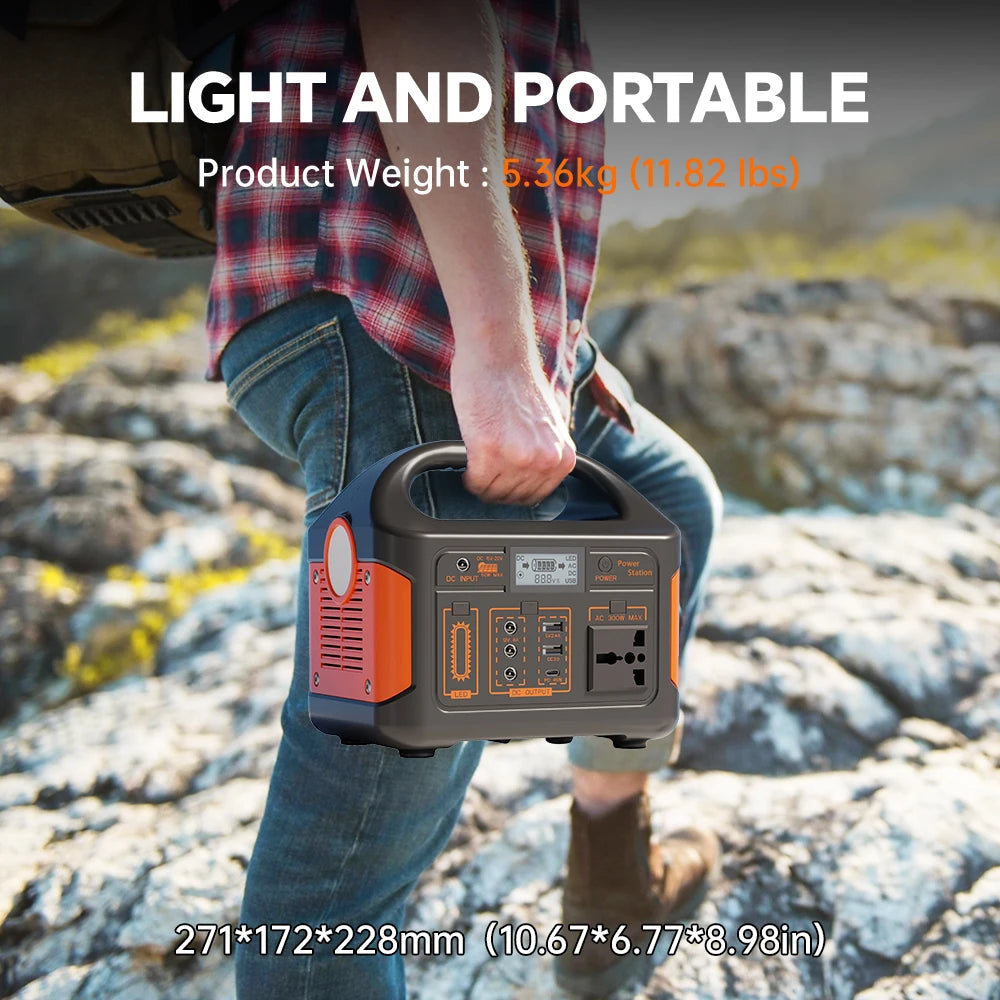

Product size (mm) |
160*100*143mm |
211*160*196mm |
271*172*220mm |
Outer packaging size (mm) |
200*100*150mm |
260*160*200mm |
300*200*260mm |
Charging Time |
After full discharge,the battery capacity reaches 80% after 5 hours OT |
||
LCD |
Battery Voltage, State of Charge, State of Charge, State of Discharge |
||
Heat Dissipation |
Intelligent Temperature Control Cooling Fan |
||
Noise |
1Meter Distance <45dB |
||
Protection Functions |
Low Voltage, Over voltage, OverLoad, Over Temperature, Short Circuit |
||
